Enamel Heat Storage Water Tank Integrated Flat Plate Pressurized 100L-300L All-in-One Flat Plate Solar Water Heater

Place of Origin : Hubei, China

Brand Name : OEM

Model Number : See details

Pipe Material : Copper

Coating : Black chromium

Product name : Flat Plate Solar Collector

Application : Outdoor

Warranty : 3 Years, 3Years

Use : Solar Hot Water Heating System

Material : Aluminum plate + copper pipes

Color : Black

Size : 2000* 1000* 80mm

Frame : Alumimum

Insulation : Polyurethane

Working Pressure : 1.5 Bar

Certificate : CE

MOQ : 2 sets

Price : $350-380 / set

Contact Now

Product Description

Enamel Heat Storage Water Tank Integrated Flat Plate Pressurized 100L-300L All-in-One Flat Plate Solar Water Heater

Specification


Overall Data	Collector dimension(mm)	2000x1000x80
		Overall area(m2)	2.0
		Aperture area(m2)	1.88
Absorber	Header dimension(mm)
		Welding way	Laser welding
		Absorber coating	Black Coating Film
		Riser Dimensions
		Max. working pressure	1.5Mpa
		Absorber Material	Aluminum plate + copper pipes
		Absorption	≥92%
		Emittance	8%
Insulation	Insulation material	Polyurethane
Glazing	Transmittance	92%
Glazing		Material	3.2mm Low iron tempered textured glass
Casing	Frame	Aluminum
		Back plate	Hot Galvanized Plate
		Frame color	Black
		Sealing gasket	Integral Silicone glue
Overall weight	Net weight(kg)	32
Quantity	40HQ Container Loading	350

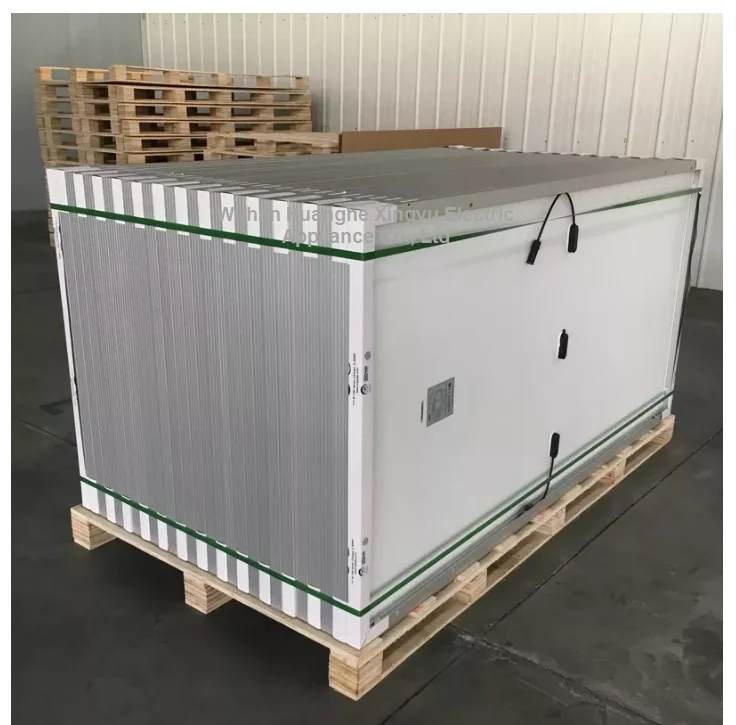

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Founded in 2007, Wuhan Huanghe Xingyu Electric Appliance Co., Ltd has a history of 15 years, with several product display stores, to provide customers with a full range of hot water system solutions from single machine to system, from home to business. The company has a standardized management mechanism and a complete after-sales service network system, obtained a number of computer software copyright registration certificates, and has a number of solar energy and air energy utility model patents.
Since its establishment, the company has always been adhering to the "honesty, quality, reputation first" service purpose, for the vast number of enterprises and public customers, government departments, the public to provide satisfactory service. At the same time, all our staff firmly establish the values of serving the society, and to standardize the behavior, excellent technology,excellent quality service society.

FAQ

Q1: Can the product be shipped to my area?
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU).
Q3: What about the lead time?
A3: 7days for sample order,15 days for small order,and need be negotiated for big orders.
Q2: How can I make payment?
A2:100% TT or maximum we can accept 30% TT in advance and 70% TT or LC upon goods ready before shipment
Q4: What is the mode of transport?
A4: International section is generally sea transport, also can be air transport and express delivery.
Q5: what’s the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please
refer to our limited warranty statement
Q6. what services can we provide?
A6:Accepted Delivery Terms: FOB,EXW,Express Delivery
Accepted Payment Currency:USD,HKD,CNY
Accepted Payment Type: T/T,L/C
Language Spoken:English,Chinese

Enamel Heat Storage Water Tank Integrated Flat Plate Pressurized 100L-300L All-in-One Flat Plate Solar Water Heater Images
