High Quality Double Wing Evacuated Tube Solar Collector Low-Pressure Factory Supply for Swimming Pool Use

Place of Origin : China

Pipe Material : Glass

Application : swimming pool

Product name : Solar collector

Dimension : 3.9x2.08x1.5m

Absorb area : 8m2

Tube material : High borosilicate 3.3 glass three layers coating

Capacity : 100-1000L

Certificate : CE

Use : Hot Water Heating

Type : 58-1800mm

MOQ : 2 sets

Price : $310-350 / set

Contact Now

High Quality Double Wing Evacuated Tube Solar Collector Low-Pressure Factory Supply for Swimming Pool Use

Products Description

Material of out manifold			0.4mm glavanized steel
Material of inner manifold			Food grade 0.4mm SUS304 Stainless Steel
Tank insulating layer			40mm high-density polyurethane foamed
Inlet and outlet hole			110mm
Gross area			8
Tube quantity			50 tubes
Power output			1500W-3000W
Flow rate			200
Output temperature of air			50-205℃(adjustable according to system controller)
Solar collector tube			3.3 Borosilicate glass with Cu/SS-ALN/ALN coating
Thickness of glass tube			1.6mm
Vacuum tube tightness			P≤0.005Pa
Absorption			as=0.93-0.96(AM 1.5)
Emission ratio			0.04-0.06(80℃±5℃)
Idle sunning property parameters			Y=220-260m2.C/KW
Average heat loss coefficient			ULT=0.6-0.7W(m2.℃)

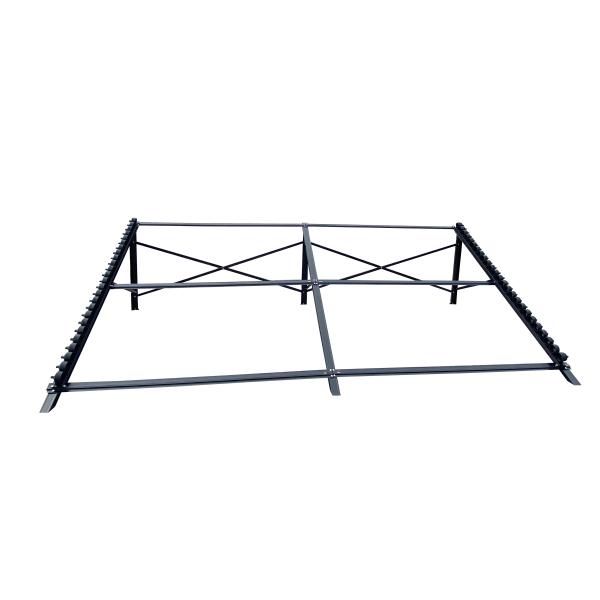

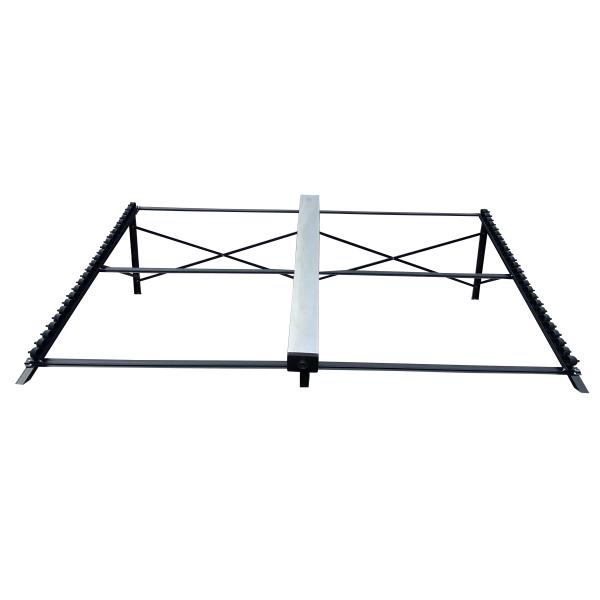

Bracket(frame)			1.5mm thickness galvanized steel
Angle			0° for sloop roof,27/38/45° for flat roof
Welding			Argon arc welding
Fastening pieces			Made of SS screw
Power of Fan			100W

Installation Procedures

Pre-sale Service

1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality+Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater,
we cherish every order from our honor.

After you choose

1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service

After-sale service

1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.

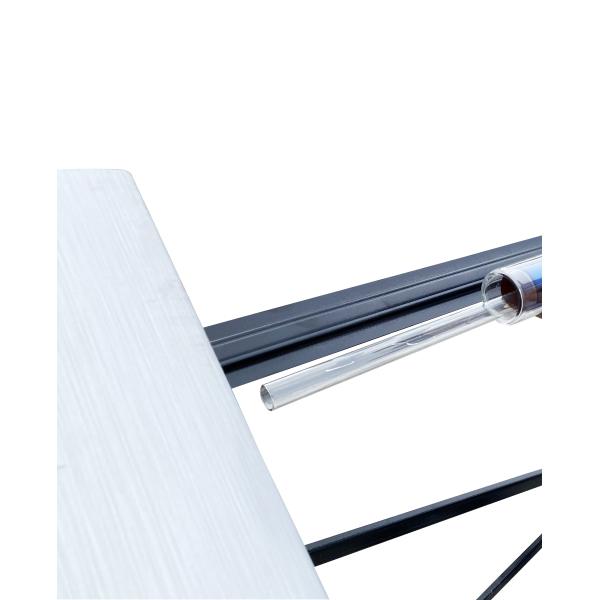

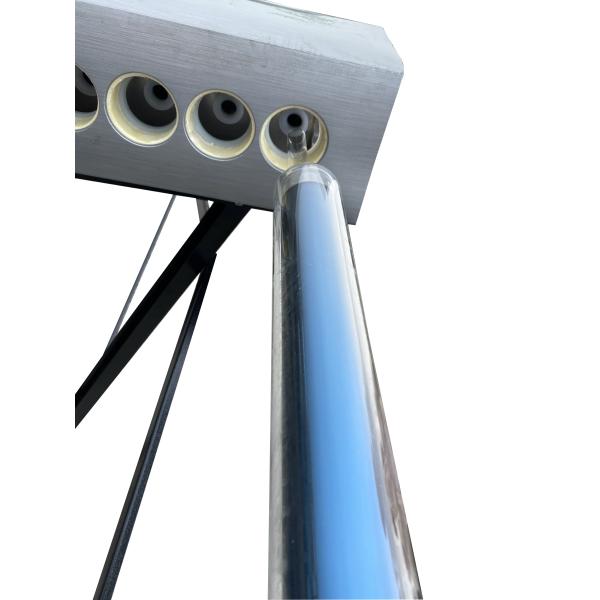

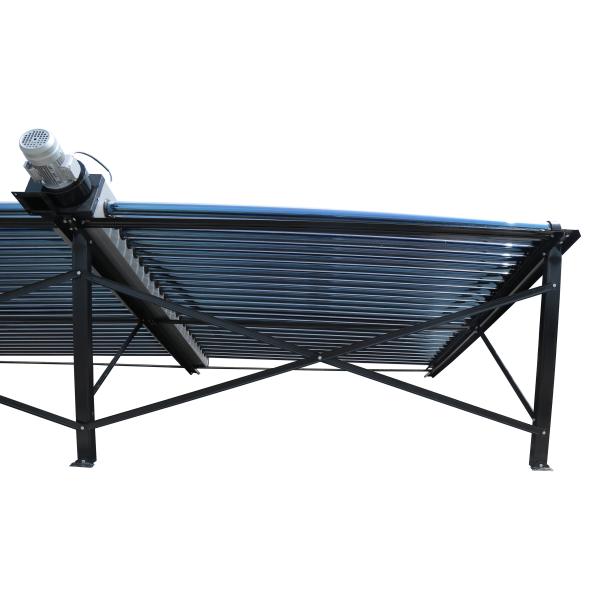

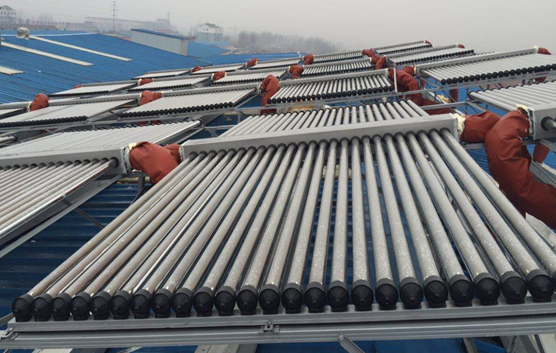

High Quality Double Wing Evacuated Tube Solar Collector Low-Pressure Factory Supply for Swimming Pool Use Images
